DA02 Wall Washing Shelf Light with 45° Adjustable Swing for Retail Displays

Professional Wall Washing Shelf Light with ±45° Swing for Modern Retail Spaces

The wall washing shelf light DA02 series is a professional linear lighting solution developed for retail shelves, wall displays, and merchandising environments that demand controlled illumination, directional flexibility, and consistent visual presentation. By combining wall washing performance with linear shelf lighting, the DA02 series delivers uniform brightness across vertical display surfaces while enhancing product visibility at eye level.

A key advantage that sets the DA02 series apart from conventional linear track lights is its ±45° left-right swing rotation. The light body can pivot horizontally, allowing the curtain-like beam pattern to rotate together with the fixture. As a result, lighting direction can be precisely adjusted to follow shelving depth, wall angles, or changing display layouts—without relocating the track or replacing luminaires.

Unlike traditional spot-based track lighting or fixed linear washers, this wall washing shelf light produces smooth, continuous illumination with directional control, reducing shadows and improving overall visual comfort. Therefore, it is especially suitable for supermarkets, fashion stores, footwear displays, cosmetics, and large-scale retail interiors where both vertical walls and shelf fronts must be evenly illuminated.

Adjustable Beam Angles with ±45° Swing for Precise Directional Control

One of the defining advantages of the DA02 wall washing shelf light is its combination of adjustable beam angles and horizontal swing rotation. The fixture supports 15°, 24°, and 36° beam angles, enabling lighting designers to fine-tune light distribution based on shelf depth, wall height, and product arrangement.

• 15° beam angle – Ideal for focused vertical wall washing and high shelves

• 24° beam angle – Balanced illumination for standard retail shelving

• 36° beam angle – Wider coverage for large shelves and aisle-facing displays

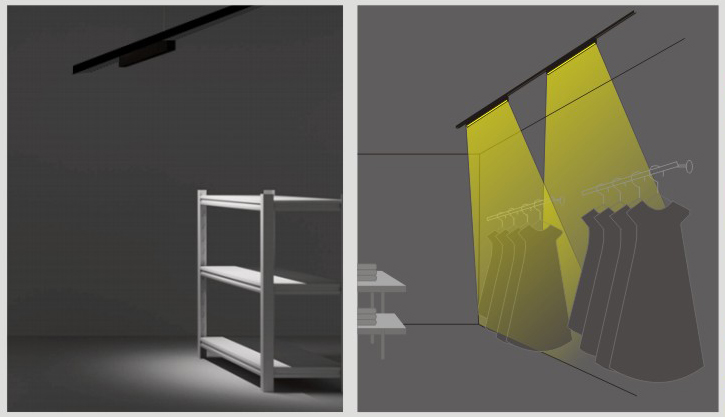

In addition, the ±45° left-right swing mechanism allows the entire light body to rotate, causing the linear “curtain light” to follow the rotation angle. This makes it possible to:

• Direct light deeper onto shelves or more vertically onto display walls

• Fine-tune lighting direction after installation

• Adapt to merchandising changes without altering the track layout

• Reduce glare by optimizing the angle of incidence

This dual-layer flexibility—beam angle selection + horizontal swing adjustment—gives the DA02 series a level of control rarely found in linear track-mounted shelf lights.

High Color Rendering for Accurate and Trustworthy Product Presentation

Color accuracy plays a crucial role in retail lighting. The wall washing shelf light DA02 series delivers CRI Ra ≥90, ensuring that product colors appear natural, consistent, and visually appealing under artificial lighting.

The fixture supports multiple correlated color temperature options:

• 3000K – Warm white for premium fashion and lifestyle displays

• 3500K – Soft neutral white for mixed retail environments

• 4000K – Standard neutral white for supermarkets and daily retail

• 4500K – Clean, bright white for modern commercial interiors

By maintaining stable color output and high color fidelity, this LED linear track light helps retailers create visually reliable environments that support customer confidence, longer dwell time, and purchasing decisions.

Linear Design Optimized for Wall Washing and Shelf Lighting

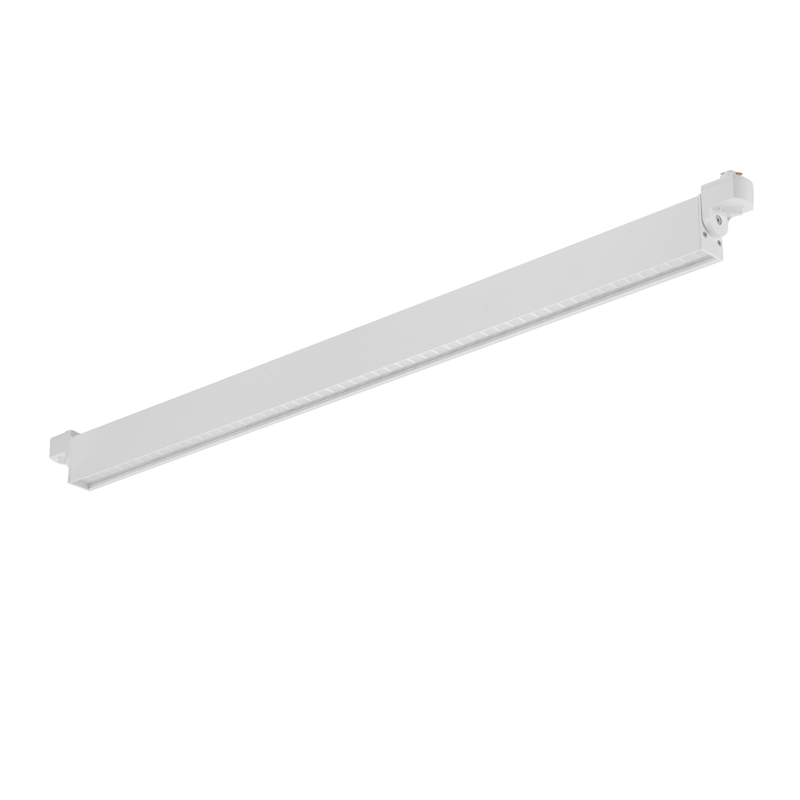

The DA02 series features a slim, linear profile engineered specifically for shelf and wall washing applications. Unlike point-source luminaires that create hotspots, this retail shelf lighting system provides uniform brightness along the entire fixture length, ensuring smooth vertical illumination.

The integrated swing structure is compact and visually clean, allowing the fixture to blend seamlessly into modern retail ceilings without drawing attention away from the merchandise.

Available models include:

• DA02-60 – Compact solution for narrow shelving or short runs

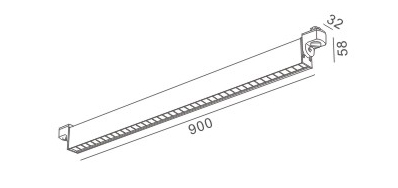

• DA02-90 – Standard length for most retail shelving systems

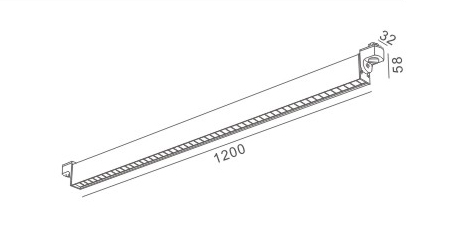

• DA02-120 – Extended coverage for wide wall displays and long aisles



All models share the same optical system, swing structure, and color performance, ensuring consistent lighting quality throughout the store.

Efficient Performance and Long-Term Reliability

Equipped with high-efficiency SMD 3030 LEDs, the DA02 wall washing shelf light achieves approximately 130 lm/W, delivering strong illumination while maintaining excellent energy efficiency.

Power configurations include:

• DA02-60: 30W

• DA02-90: 40W

• DA02-120: 48W

The robust aluminum housing provides effective thermal management, ensuring stable light output and long service life during extended daily operation. Therefore, this LED linear track shelf light is particularly well-suited for supermarkets and retail stores that operate long hours.

Flexible Track Installation for Global Retail Projects

The wall washing shelf light DA02 series supports 2-wire, 3-wire, and 4-wire track systems, making it compatible with most international track standards. Additionally, it supports 220–240VAC (50/60Hz) and 100–127VAC (50/60Hz) voltage ranges.

This global compatibility simplifies project planning for lighting designers, contractors, and distributors working across different regions and retail formats.

Typical Applications

The DA02 wall washing shelf light is widely used in:

• Supermarket shelving and aisle wall lighting

• Fashion and footwear retail displays

• Cosmetics and lifestyle product walls

• Specialty retail stores and brand showrooms

Thanks to its ±45° swing curtain-light behavior, it is especially effective in spaces where shelf depth, wall height, or display angles vary.

Designed for Professional Retail Lighting Systems

As part of a professional LED linear track lighting portfolio, the DA02 series is engineered for performance consistency, design integration, and scalability. It works seamlessly alongside other linear and spot track luminaires, allowing designers to build layered retail lighting schemes with precision.

For architects, lighting designers, and commercial retailers seeking a wall washing shelf light with adjustable direction, high color accuracy, and reliable performance, the DA02 series delivers a refined and future-proof solution.
