Professional Supermarket Shelf Lighting for Modern Retail Projects
Effective supermarket shelf lighting plays a critical role in product visibility, customer comfort, and overall store performance. DP01-60B is engineered as a next-generation solution for retail environments that require both focused shelf illumination and consistent aisle brightness within a single track lighting system.
Unlike conventional linear fixtures, DP01-60B integrates accent lighting and general lighting into one unified design, making it an ideal supermarket shelf light for modern grocery stores, hypermarkets, and large-scale retail projects.
Three-Sided Illumination Design for Balanced Light Distribution
The defining feature of DP01-60B is its three-sided illumination structure. The fixture delivers directional light toward both sides of shelving while providing soft, uniform illumination through the central diffuser.
This configuration allows:
-
Precise accent lighting on left and right product shelves
-
Comfortable general lighting for customer walkways
-
Reduced contrast between shelving and aisle areas
-
Improved visual clarity without glare or harsh shadows
By addressing both shelf and aisle lighting simultaneously, DP01-60B enhances the overall effectiveness of supermarket shelf lighting systems.

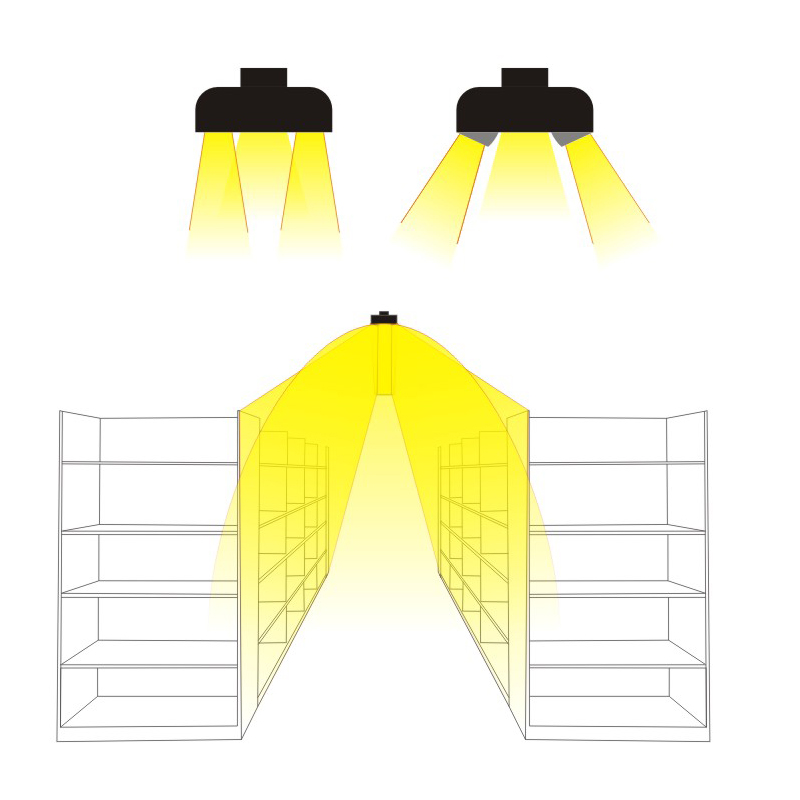

Three-Sided Light Distribution for Supermarket Shelves
Dual Accent Lighting and Central Aisle Illumination in One Fixture
Traditional supermarket layouts often rely on separate luminaires for shelf accent lighting and aisle lighting. DP01-60B eliminates this complexity by combining both functions into a single retail track lighting solution.
The side-facing optical modules highlight products with controlled beam distribution, while the central light panel ensures continuous ambient illumination. This dual-function design reduces fixture count, simplifies layout planning, and lowers installation and maintenance costs for large retail projects.
Optimized Optical Performance for Retail Applications
DP01-60B is designed with a fixed 24° beam angle to achieve consistent shelf illumination across standard gondola systems. High-efficiency SMD 3030 LED chips provide stable output and long-term reliability, making this supermarket shelf light suitable for extended daily operation.
With selectable CRI options (Ra>80 or Ra>90), the system supports accurate color rendering for packaged goods, fresh products, and branded merchandise.
Electrical Configuration and Power Distribution
This model operates at a total power configuration of 2×24W + 15W, delivering high luminous efficiency while maintaining energy control. The lighting system supports multiple global track standards, including 2-wire, 3-wire, and 4-wire tracks, ensuring compatibility with international retail projects.
DP01-60B is available for 220–240VAC and 100–127VAC applications, making it adaptable to supermarket shelf lighting installations worldwide.
Flexible Installation for Supermarket Track Lighting Systems
As part of a modular track lighting system, DP01-60B allows flexible positioning and alignment along continuous tracks. This flexibility is essential for adapting to different shelf heights, aisle widths, and store layouts.
Installers can easily integrate the fixture into linear track runs, creating consistent lighting zones throughout supermarket aisles without visual interruption.

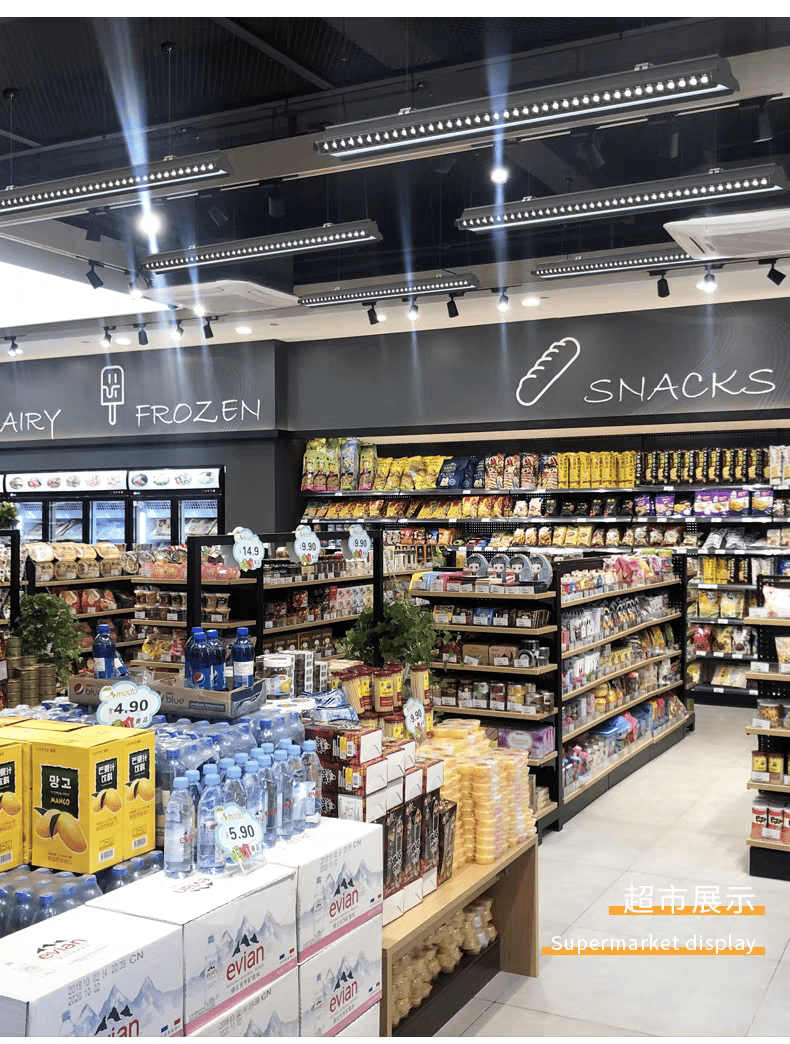

Applications of DP01-60B Supermarket Shelf Lighting
DP01-60B is widely used in:
-
Supermarkets and grocery chains
-
Hypermarkets and warehouse retail stores
-
Convenience stores and pharmacies
-
Daily goods and household product aisles
-
Retail gondola and shelving systems
Its balanced lighting approach makes it particularly suitable for high-traffic retail environments where visual comfort is as important as product emphasis.

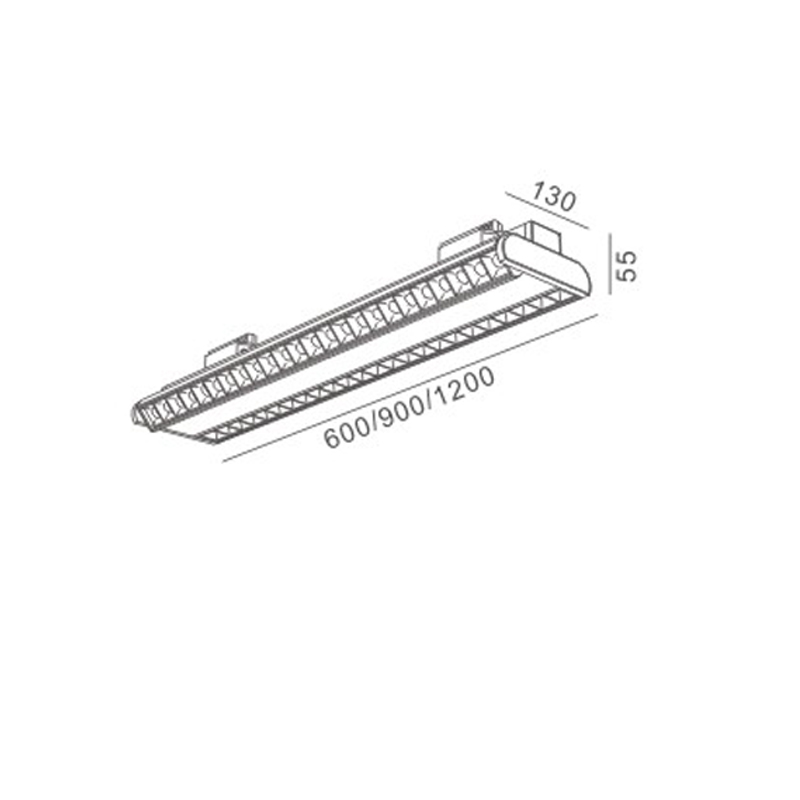

Additional Size Options for Supermarket Projects
In addition to the DP01-60B model, the DP01 series offers two extended length options to meet different aisle widths and shelf layouts in supermarket lighting projects.
DP01-90B – 900mm Supermarket Shelf Lighting
DP01-90B features a 900mm length design with a power configuration of 2×33W + 20W, providing enhanced coverage for wider aisles and longer shelving runs. It maintains the same three-sided light distribution, ensuring balanced shelf illumination and uniform central aisle lighting.
DP01-120B – 1200mm Supermarket Shelf Lighting
DP01-120B is the longest option in the series, measuring 1200mm with a power configuration of 2×40W + 30W. This model is ideal for large supermarkets and hypermarkets where continuous shelf lighting and consistent brightness across extended aisles are required.

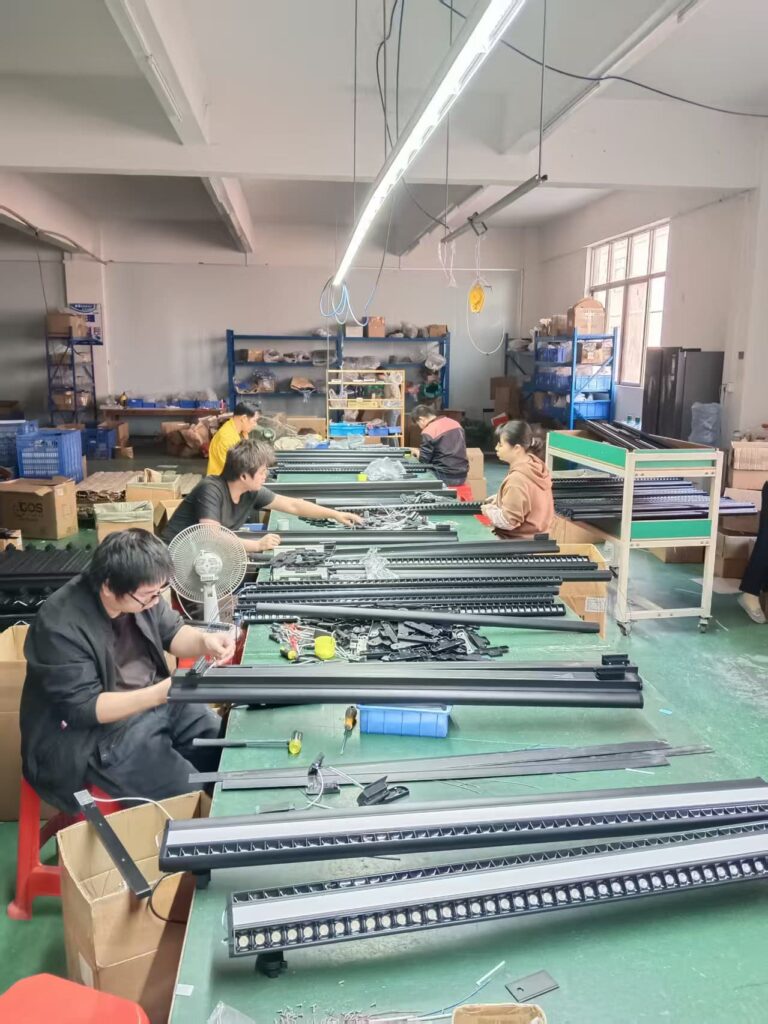

DP01-120B Production at FOJO Lighting Factory
Factory-Direct Supermarket Lighting Solution from FOJOLUX
FOJOLUX Lighting specializes in supermarket shelf lighting solutions for B2B clients and commercial projects. As a factory-focused manufacturer, we support customization in power configuration, length, finish, drivers, and track compatibility to meet specific project requirements.
DP01-60B reflects our commitment to delivering reliable, scalable, and cost-effective track lighting system solutions for professional retail environments.
Reliable Performance for Long-Term Retail Operation
Designed for continuous operation, DP01-60B offers stable light output, efficient thermal management, and long service life. Its robust construction and factory-controlled quality ensure dependable performance in demanding supermarket conditions.
For project contractors, lighting designers, and distributors, DP01-60B provides a reliable foundation for modern supermarket shelf lighting installations.
As a core product within our LED Linear Track Light category, DP01-60B features a three-sided illumination structure designed for balanced shelf lighting in supermarket environments.
